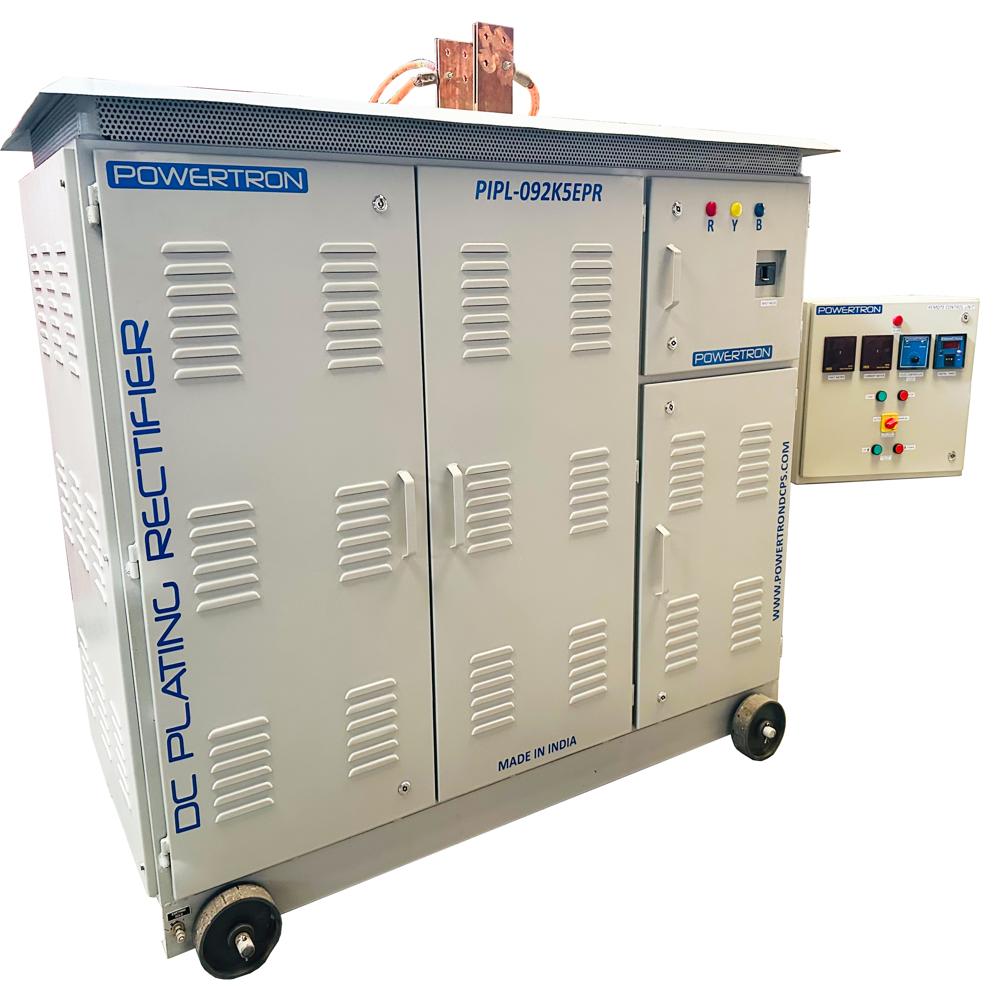

Remote Monitoring and Control Systems for CP Electroplating Rectifier
689000.0 INR/Unit
Product Details:
- Product Type Remote Monitoring and Control System for CP Electroplating Rectifier
- Application Continuous monitoring and control of DC electroplating rectifier operations
- Input Voltage 415 Volt (V)
- Output Frequency 50 Hz / 60 Hz (Selectable)
- Output Current 5000 or Customized Ampere (amp)
- Output Voltage 18 Volt (V)
- Modular Yes, modular build for scalable capacity
- Click to View more
X
Remote Monitoring and Control Systems for CP Electroplating Rectifier Price And Quantity
- 689000.0 INR/Unit
- 1 Unit
Remote Monitoring and Control Systems for CP Electroplating Rectifier Product Specifications
- Light Grey (Powder-Coated)
- 415 Volt (V)
- Standard and Custom sizes (Depends on model)
- Automatic and Manual Operation
- Yes, modular build for scalable capacity
- 5000 or Customized Ampere (amp)
- Approx. 350 Kg (Varies as per capacity)
- 1500mm x 800mm x 1700mm (Typical for standard models)
- 50 Hz / 60 Hz (Selectable)
- 18 Volt (V)
- Continuous monitoring and control of DC electroplating rectifier operations
- 1 YEAR
- Remote Interface via Ethernet/RS485, Manual Control Panel
- Remote Monitoring and Control System for CP Electroplating Rectifier
- IS/IEC standards for electrical equipment
- Up to 95% RH, non-condensing
- Natural Air/Oil Forced Cooling System
- Digital LED/LCD for current, voltage, and operational status
- IP54 (Indoor/Outdoor Selector Available)
- 1% of Set Value
- Audio/Visual Alarm for Fault Indication
- Remote Monitoring & Manual Panel Control
- Ethernet/RS485 compatible for remote diagnostics
- Over Voltage, Over Current, Short Circuit, Over Temperature Protection
- Above 90%
- Continuous data log storage for maintenance and compliance
- 0C to 55C
- Wheeled Base for Mobility
Remote Monitoring and Control Systems for CP Electroplating Rectifier Trade Information
- 40 Days
Product Description
POWERTRON Electroplating Rectifier
FEATURES :
FEATURES :
- Modular Thyristor Design
- Manual Current Limit Option
- Active Current sharing
- Endurance Performance
- CVCC Mode
- High Reliability
- High Efficiency, Long Life
- Low Ripple DC Output
- Remote Monitoring Interface available with HMI display
- Used for Cathodic Protection
Advanced Monitoring & Dual Control Options
Operators can supervise and adjust electroplating rectifier functions either directly using the manual panel or remotely through Ethernet/RS485 interfaces. Real-time digital LED/LCD displays present key metrics, enabling timely interventions and efficient oversight, regardless of your location within the facility or offsite.
Built-In Protection & Durable Enclosure
This system integrates multiple safeguards-including over voltage, over current, short circuit, and over temperature protection-to enhance equipment longevity and personnel safety. The IP54-rated enclosure and wheeled base support both mobility and versatile placement for indoor or outdoor use, accommodating varied application environments.
Reliable Data Logging & Compliance
Continuous data logging secures a historical record of operational metrics for maintenance and regulatory compliance. Modular design allows system expansion, while adherence to IS/IEC standards ensures industry-required performance and safety. Audio-visual alarms and high control accuracy promote trouble-free operation and quality output.
FAQ's of Remote Monitoring and Control Systems for CP Electroplating Rectifier:
Q: How does the remote monitoring feature operate in this CP electroplating rectifier system?
A: Remote monitoring enables operators to access live current, voltage, and status information through Ethernet or RS485 from any location. The digital LED/LCD display offers a clear view for both remote and manual users, making supervision efficient and reducing the need for physical presence around the rectifier.Q: What protections are included, and how do they enhance system reliability?
A: The system offers comprehensive protection against over voltage, over current, short circuits, and over temperature events. These protections automatically trigger the built-in audio/visual alarm, helping prevent equipment damage and ensuring operational safety.Q: When should the manual control panel be used instead of the remote interface?
A: Manual control is ideal for on-site adjustments, immediate troubleshooting, or during maintenance when physical access to the rectifier is available. Remote operation is preferred for routine monitoring, diagnostics, or in hazardous environments to minimize personnel exposure.Q: Where can this system be installed, and what makes it suitable for various locations?
A: Thanks to its IP54-rated enclosure and indoor/outdoor selector, the system can be installed in diverse environments. Its wheeled base provides mobility, enabling easy relocation within a facility to suit changing operational needs.Q: What is the process for data logging, and how is this information used?
A: The system continuously logs operational parameters, storing data that can be accessed for maintenance planning, troubleshooting, or compliance documentation. This historical data supports proactive maintenance and helps meet regulatory requirements.Q: What are the main benefits of choosing this modular, remote-monitored rectifier system?
A: Key benefits include scalable capacity through modular build, enhanced operator safety with remote controls and fault alarms, reliable performance with over 90% efficiency, and simplified compliance thanks to robust data logging and adherence to IS/IEC standards.Tell us about your requirement
