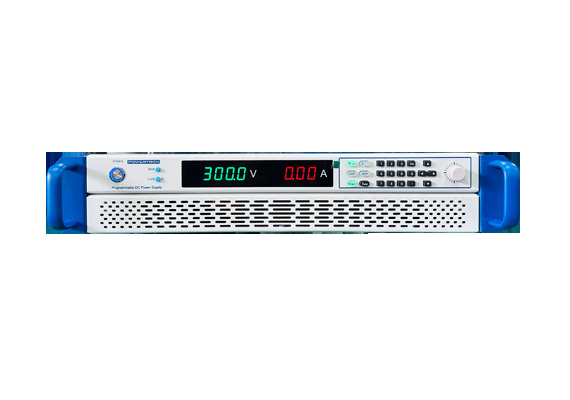

Wide Range Programmable DC Power Supply

Get a Price/Quote

Product Details:

Product Type Wide Range Programmable DC Power Supply
Input Voltage 220 Volt (V)
Rated Voltage 220 Volt (V)
Usage & Applications Industrial
Size Standard
Display Type Digital
Phase Three Phase
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Wide Range Programmable DC Power Supply Price And Quantity

Minimum Order Quantity 1 Unit

Wide Range Programmable DC Power Supply Product Specifications

Rated Voltage 220 Volt (V)
Warranty 1 Year
Product Type Wide Range Programmable DC Power Supply
Features Good Quality
Usage & Applications Industrial
Phase Three Phase
Display Type Digital
Size Standard
Input Voltage 220 Volt (V)
Frequency 50 Hertz (HZ)

Wide Range Programmable DC Power Supply Trade Information

Supply Ability 100 Unit Per Month
Delivery Time 7 Days

Product Description

FEATURES :

The speed of the rising and falling edges of the output is adjustable
Built in function generator
Master slave mode supports parallel connection
Support OVP, OCP, OPP, OTP protection support sense terminal reverse connection protection
Equipped with discharge circuit (Uout<10V within 1second)
List sequence programming function
Power absorption function
Output end backpressure protection (optional)
Built in remote analog control interface
Support for SCPI instruction language

Model	Voltage	Current	Power	Ripple
PIPL-1K5-35-100-WPS	0-35V	0-100A	1500W	10mVrms
PIPL-1K5-40-60-WPS	0-40V	0-60A	1500W	10mVrms
PIPL-1K5-60-75-WPS	0-60V	0-75A	1500W	10mVrms
PIPL-1K5-80-60-WPS	0-80V	0-60A	1500W	10mVrms
PIPL-1K5-100-50-WPS	0-100V	0-50A	1500W	20mVrms
PIPL-1K5-200-25-WPS	0-200V	0-25A	1500W	20mVrms
PIPL-1K5-360-15-WPS	0-360V	0-15A	1500W	40mVrms
PIPL-1K5-500-10-WPS	0-500V	0-10A	1500W	50mVrms
PIPL-1K5-750-7-WPS	0-750V	0-7A	1500W	50mVrms
PIPL-1K5-1000-5-WPS	0-1000V	0-5A	1500W	100mVrms

Model	Voltage	Current	Power	Ripple
PIPL-3K-35-200-WPS	0-35V	0-200A	3000W	10mVrms
PIPL-3K-40-120-WPS	0-40V	0-120A	3000W	10mVrms
PIPL-3K-60-150-WPS	0-60V	0-150A	3000W	10mVrms
PIPL-3K-80-120-WPS	0-80V	0-120A	3000W	10mVrms
PIPL-3K-100-100-WPS	0-100V	0-100A	3000W	20mVrms
PIPL-3K-200-50-WPS	0-200V	0-50A	3000W	20mVrms
PIPL-3K-360-30-WPS	0-360V	0-30A	3000W	40mVrms
PIPL-3K-500-20-WPS	0-500V	0-20A	3000W	50mVrms
PIPL-3K-750-14-WPS	0-750V	0-14A	3000W	50mVrms
PIPL-3K-1000-10-WPS	0-1000V	0-10A	3000W	100mVrms

Model	Voltage	Current	Power	Ripple
PIPL-5K-80-170-WPS	0-80V	0-170A	5000W	15mVrms
PIPL-6K-300-75-WPS	0-300V	0-75A	6000W	40mVrms
PIPL-6K-500-40-WPS	0-500V	0-40A	6000W	50mVrms
PIPL-6K-800-25-WPS	0-800V	0-25A	6000W	75mVrms
PIPL-6K-1000-15-WPS	0-1000V	0-15A	6000W	100mVrms

Model	Voltage	Current	Power	Ripple
PIPL-10K-80-340-WPS	0-80V	0-340A	10000W	15mVrms
PIPL-12K-300-150-WPS	0-300V	0-150A	12000W	40mVrms
PIPL-12K-800-500-WPS	0-800V	0-50A	12000W	75mVrms
PIPL-12K-1000-30-WPS	0-1000V	0-30A	12000W	100mVrms

Model	Voltage	Current	Power	Ripple
PIPL-15K-80-510-WPS	0-80V	0-510A	15000W	15mVrms
PIPL-18K-300-225-WPS	0-300V	0-225A	18000W	40mVrms
PIPL-18K-500-120-WPS	0-500V	0-120A	18000W	50mVrms
PIPL-18K-800-75-WPS	0-800V	0-75A	18000W	75mVrms
PIPL-18K-1000-45-WPS	0-1000V	0-45A	18000W	100mVrms
PIPL-18K-1500-40-WPS	0-1500V	0-40A	18000W	150mVrms
PIPL-18K-2250-25-WPS	0-2250	0-25A	18000W	225mVrms
